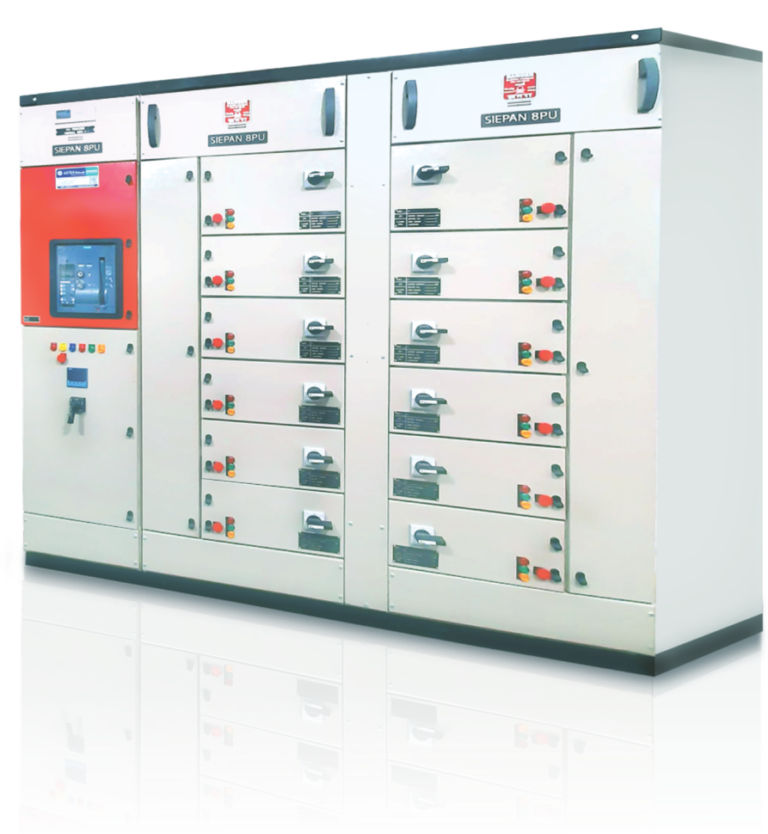

SIEMENS SIEPAN 8PU

Siemens 8PU design for low voltage switchboards has become an industry benchmark with proven performance for the past many decades.

Designed to operate in challenging conditions of high ambient & dust 8PU low voltage switchboards have been patronized by various segments like cement, steel, refinery, oil & gas, pharma, F&B, data centres, hospitals & hotels, metro-rail projects having deployed more than 100,000 LV switchboards for maximum reliability and performance.

This proven technology from Siemens for SIEPAN 8PU®

LV Switchboards is now also available through a network of Licensed Partners across the country.

Highlights:

Conformance to Type Tested assemblies (TTA)
Conformance to Seismic withstand upto Zone V
Conformance to Internal Arc Containment (IAC)
Fully compartmentalized, bolted & modular design for PCC & MCC
Non-compartmentalized drive control panels
Non-compartmentalized APFC panels

Customer benefits:

Siemens innovation & technology
Maximum reliability in protection of your plant and equipment
Maximum safety for operating personnel
Suited for the most arduous site conditions
Compact and space saving
Extensive License Partner network across the country

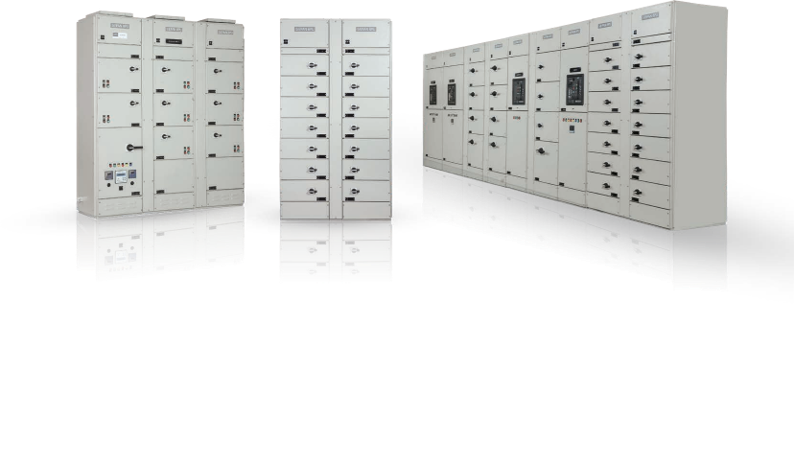

Range:

Power control centres
Communication capable intelligent power control centres (IPCCs)
Withdrawable motor control centres with patented Alstan® bus-bar technology
Energy management PCCs for Plant & Building
Motor control centres – Fuseless and with Fuse
Intelligent motor control centres (IMCCs)
Integrated PMCCs for Ethernet connectivity
Automatic power factor correction panels
All variants available with a choice of aluminum and copper for bus-bars
Degree of ingress protection upto IP 54 for all ratings

LV switchboard SIEPAN 8PU:

Technical Data

Conformance to standards	IS8623-1 / IEC 439
Internal Arc Containment	IEC 61641
Seismic withstand	IS 1893
Short circuit withstand (Icw) – main bus	65kA / 1sec / 143kA peak
Short circuit withstand (Icw) – neutral	39kA / 1sec / 82kA peak
Short circuit withstand (Icw) – earth	39kA / 1sec / 82kA peak
Degree of protection (IP)	IP 4X, 5X, X3, X4
Ambient temperature	40º C / 45º C / 50º C
Temperature rise	As per IEC 61439 -2
Seismic conformance test	Zone III & V
Rated insulation voltage	upto 1000V
Rated operational voltage	upto 690V
Rated impulse withstand	8kV
Main busbar rating	upto 5000A
Busbar execution	Interleaved / non-Interleaved
Busbar options	Copper / aluminium
lnfeed termination	Cable / bus ways / busduct
lnfeed entry	Top / bottom
Cable feeder access	Front / rear
ACB cubicle	Single tier
Form of seperation	upto form 4B
Standard height	2300mm
Standard depth	1120mm / 560mm
Standard colour shade	RAL 7035

Type tests:

Verification of temperature rise limits
Verification of di-electric properties
Verification of short-circuit withstand
Verification of continuity of protective circuit
Verification of clearances and creepage distance
Verification of mechanical operation
Verification of degree of protection

Special test

Verification of seismic withstand for zone III / V
Verification of internal arc containment (IAC)

Routine tests:

Inspection of wiring and electrical operation
Verification of insulation
Verification of protective measures and continuity of protective circuits
Verification of insulation resistance

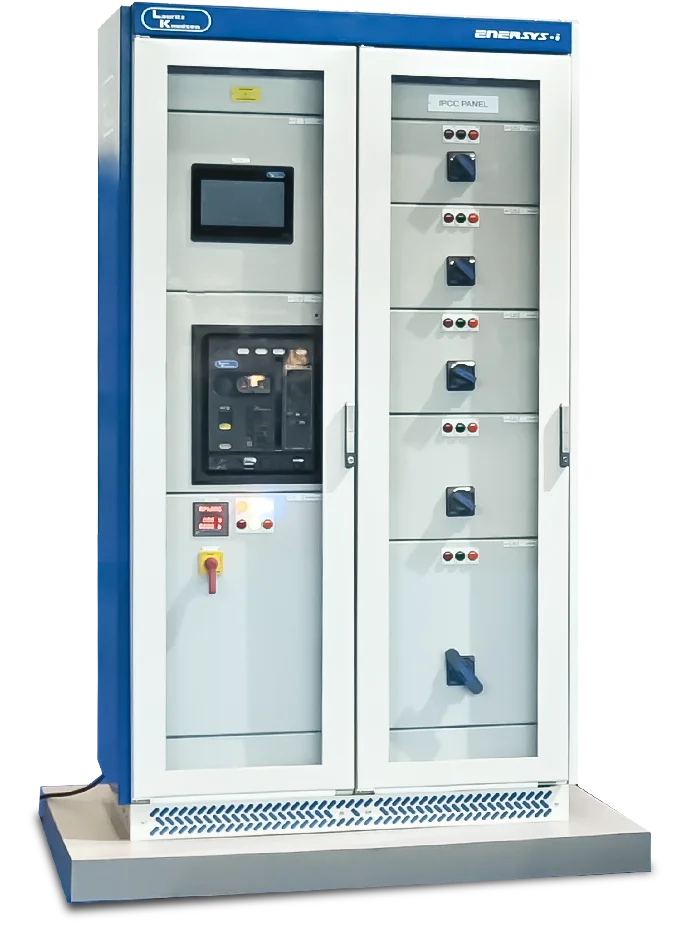

LAURITZ KNUDSEN ENERSYS

Overview

Enersys by Lauritz Knudsen Electrical & Automation is more than a power distribution unit—it’s a blend of smart engineering and digital innovation. Crafted for superior safety, reliability, and efficiency, it combines advanced technology with a sleek, modern look, ensuring your electrical systems are secure and future-proof. Enersys, a true smart panel, integrates advanced communication capabilities, intelligent thermal management, and eco-conscious engineering design for next-generation power solutions. Backed by Lauritz Knudsen Electrical & Automation’s 70-year legacy of powering India, it delivers reliable, future-ready electrical systems tailored for Indian conditions, blending performance with innovation.
